網站首頁 > BOSERL減速機 > 傘齒輪斜齒輪減速馬達 > KAF系列齒輪減速馬達

KAF38減速機詳細信息

prevnext

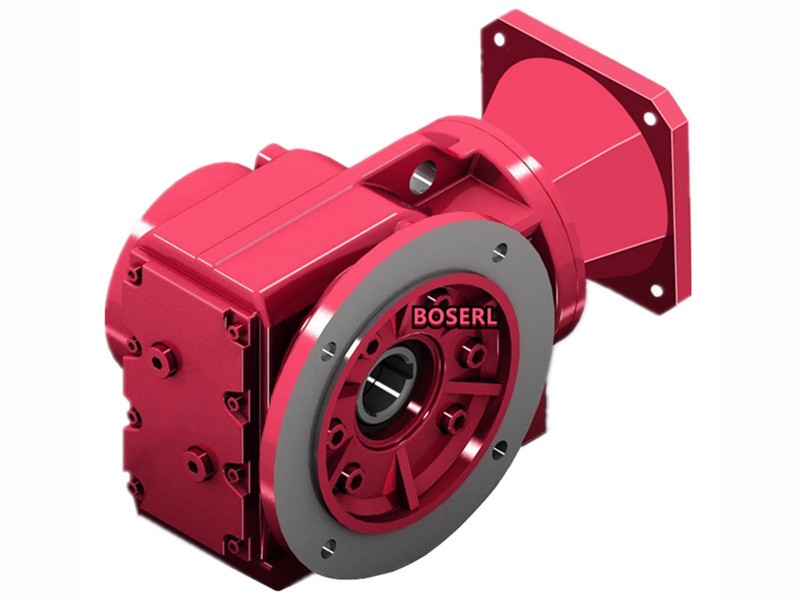

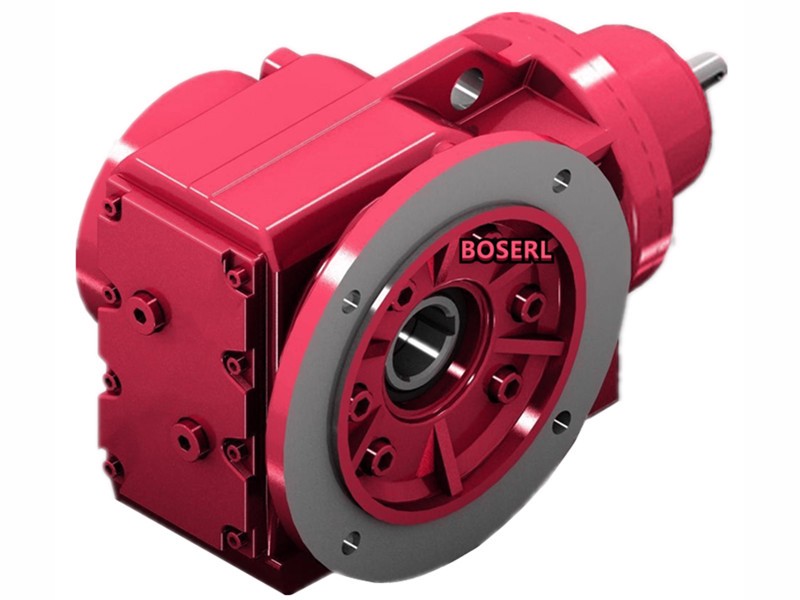

KAF38減速機

訂購熱線：13360667204
  1. 詳細信息

KAF38減速機選型計算：齒輪減速馬達

粉末攪拌設備參數：攪拌粉末重量0.18噸，攪拌153圈/一分鐘，攪動輪子直徑41

電機轉數1400÷153圈（輸出轉速）=減速比9.79

攪拌0.18噸粉末=1764N

1764N×0.0205攪動輪子半徑=36.162×2攪拌粉末物料扭矩放大兩倍=72.324N.m

72.324N.m÷9.79減速比=7.39N.m電機扭矩

7.9N.m電機扭矩?fù)Q算成功率1.17KW以上

對應的KAF38減速機選型參數：

型號：KAF38-BVPEJ1.5KW

減速比：10.49

輸出轉數：136轉每分鐘

輸出扭矩：105N.m

安全系數：1.5

KAF38減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）二級減速機


KAF38螺旋傘齒輪減速機型號：


KAF38系列減速機參數大全：直角減速機

KAF38減速機配0.12KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y0.12KW0.12kw13rpm88N.m2.3
K37Y0.12KW0.12kw14rpm81N.m2.5
K37Y0.12KW0.12kw16rpm70N.m2.9
K37Y0.12KW0.12kw19rpm60N.m3.3
K37Y0.12KW0.12kw20rpm56N.m3.6
K37Y0.12KW0.12kw24rpm49N.m4.1
K37Y0.12KW0.12kw28rpm41N.m4.8
K37Y0.12KW0.12kw31rpm37N.m5.4
K37Y0.12KW0.12kw36rpm32N.m6.4
K37Y0.12KW0.12kw39rpm30N.m6.8
K37Y0.12KW0.12kw46rpm25N.m8
K37Y0.12KW0.12kw48rpm24N.m8.4
K37Y0.12KW0.12kw55rpm21N.m9.6
K37Y0.12KW0.12kw59rpm19N.m10
K37Y0.12KW0.12kw68rpm17N.m11
K37Y0.12KW0.12kw80rpm14N.m13
K37Y0.12KW0.12kw90rpm13N.m14
K37Y0.12KW0.12kw105rpm11N.m15
K37Y0.12KW0.12kw114rpm10N.m16

KAF38減速機配0.18KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y0.18KW0.18kw12rpm138N.m1.45
K37Y0.18KW0.18kw14rpm127N.m1.55
K37Y0.18KW0.18kw16rpm108N.m1.85
K37Y0.18KW0.18kw18rpm94N.m2.1
K37Y0.18KW0.18kw19rpm88N.m2.3
K37Y0.18KW0.18kw23rpm76N.m2.6
K37Y0.18KW0.18kw27rpm65N.m3.1
K37Y0.18KW0.18kw30rpm58N.m3.4
K37Y0.18KW0.18kw35rpm49N.m4
K37Y0.18KW0.18kw37rpm46N.m4.3
K37Y0.18KW0.18kw44rpm39N.m5.1
K37Y0.18KW0.18kw46rpm38N.m5.3
K37Y0.18KW0.18kw53rpm32N.m6.2
K37Y0.18KW0.18kw57rpm30N.m6.4
K37Y0.18KW0.18kw65rpm26N.m7
K37Y0.18KW0.18kw77rpm22N.m8.1
K37Y0.18KW0.18kw86rpm20N.m8.8
K37Y0.18KW0.18kw101rpm17N.m9.7
K37Y0.18KW0.18kw109rpm16N.m10
K37Y0.18KW0.18kw126rpm14N.m12
K37Y0.18KW0.18kw148rpm12N.m14
K37Y0.18KW0.18kw166rpm10N.m15

KAF38減速機配0.25KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y0.25KW0.25kw12rpm195N.m1
K37Y0.25KW0.25kw13rpm180N.m1.1
K37Y0.25KW0.25kw16rpm154N.m1.3
K37Y0.25KW0.25kw18rpm133N.m1.5
K37Y0.25KW0.25kw19rpm124N.m1.6
K37Y0.25KW0.25kw22rpm108N.m1.85
K37Y0.25KW0.25kw26rpm91N.m2.2
K37Y0.25KW0.25kw29rpm82N.m2.4
K37Y0.25KW0.25kw34rpm70N.m2.9
K37Y0.25KW0.25kw37rpm65N.m3.1
K37Y0.25KW0.25kw43rpm55N.m3.6
K37Y0.25KW0.25kw45rpm53N.m3.8
K37Y0.25KW0.25kw52rpm46N.m4.4
K37Y0.25KW0.25kw56rpm43N.m4.6
K37Y0.25KW0.25kw64rpm37N.m5
K37Y0.25KW0.25kw76rpm32N.m5.7
K37Y0.25KW0.25kw85rpm28N.m6.2
K37Y0.25KW0.25kw99rpm24N.m6.9
K37Y0.25KW0.25kw107rpm22N.m7.2
K37Y0.25KW0.25kw124rpm19N.m8.3
K37Y0.25KW0.25kw146rpm16N.m9.8
K37Y0.25KW0.25kw163rpm15N.m11
K37Y0.25KW0.25kw191rpm12N.m12
K37Y0.25KW0.25kw204rpm12N.m12

KAF38減速機配0.37KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y0.37KW0.37kw14rpm250N.m0.8
K37Y0.37KW0.37kw16rpm210N.m0.95
K37Y0.37KW0.37kw19rpm186N.m1.1
K37Y0.37KW0.37kw20rpm174N.m1.15
K37Y0.37KW0.37kw24rpm150N.m1.35
K37Y0.37KW0.37kw28rpm128N.m1.55
K37Y0.37KW0.37kw31rpm114N.m1.75
K37Y0.37KW0.37kw36rpm97N.m2.1
K37Y0.37KW0.37kw39rpm91N.m2.2
K37Y0.37KW0.37kw46rpm77N.m2.6
K37Y0.37KW0.37kw48rpm74N.m2.7
K37Y0.37KW0.37kw55rpm64N.m3.1
K37Y0.37KW0.37kw59rpm60N.m3.3
K37Y0.37KW0.37kw68rpm52N.m3.6
K37Y0.37KW0.37kw80rpm44N.m4.1
K37Y0.37KW0.37kw90rpm39N.m4.5
K37Y0.37KW0.37kw105rpm34N.m4.9
K37Y0.37KW0.37kw114rpm31N.m5.1
K37Y0.37KW0.37kw132rpm27N.m6
K37Y0.37KW0.37kw155rpm23N.m7
K37Y0.37KW0.37kw173rpm20N.m7.6
K37Y0.37KW0.37kw203rpm17N.m8.6
K37Y0.37KW0.37kw217rpm16N.m8.9
K37Y0.37KW0.37kw257rpm14N.m10

KAF38減速機配0.55KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y0.55KW0.55kw24rpm220N.m0.9
K37Y0.55KW0.55kw28rpm190N.m1.05
K37Y0.55KW0.55kw31rpm169N.m1.2
K37Y0.55KW0.55kw36rpm144N.m1.4
K37Y0.55KW0.55kw39rpm135N.m1.5
K37Y0.55KW0.55kw46rpm114N.m1.75
K37Y0.55KW0.55kw48rpm110N.m1.8
K37Y0.55KW0.55kw55rpm95N.m2.1
K37Y0.55KW0.55kw59rpm89N.m2.2
K37Y0.55KW0.55kw68rpm77N.m2.4
K37Y0.55KW0.55kw80rpm65N.m2.8
K37Y0.55KW0.55kw90rpm58N.m3
K37Y0.55KW0.55kw105rpm50N.m3.3
K37Y0.55KW0.55kw114rpm46N.m3.5
K37Y0.55KW0.55kw132rpm40N.m4
K37Y0.55KW0.55kw155rpm34N.m4.7
K37Y0.55KW0.55kw173rpm30N.m5.1
K37Y0.55KW0.55kw203rpm26N.m5.8
K37Y0.55KW0.55kw217rpm24N.m6
K37Y0.55KW0.55kw257rpm20N.m6.9
K37Y0.55KW0.55kw347rpm15N.m8.3

KAF38減速機配0.75KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y0.75KW0.75KW32rpm225N.m0.9
K37Y0.75KW0.75KW37rpm193N.m1.05
K37Y0.75KW0.75KW40rpm181N.m1.1
K37Y0.75KW0.75KW47rpm152N.m1.3
K37Y0.75KW0.75KW49rpm146N.m1.35
K37Y0.75KW0.75KW56rpm127N.m1.6
K37Y0.75KW0.75KW60rpm119N.m1.65
K37Y0.75KW0.75KW70rpm102N.m1.8
K37Y0.75KW0.75KW82rpm87N.m2.1
K37Y0.75KW0.75KW92rpm78N.m2.2
K37Y0.75KW0.75KW108rpm66N.m2.5
K37Y0.75KW0.75KW116rpm62N.m2.6
K37Y0.75KW0.75KW134rpm53N.m3
K37Y0.75KW0.75KW158rpm45N.m3.5
K37Y0.75KW0.75KW177rpm40N.m3.8
K37Y0.75KW0.75KW207rpm34N.m4.4
K37Y0.75KW0.75KW221rpm32N.m4.5
K37Y0.75KW0.75KW263rpm27N.m5.2
K37Y0.75KW0.75KW354rpm20N.m6.2

KAF38減速機配1.1KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y1.1KW1.1KW47rpm220N.m0.9
K37Y1.1KW1.1KW56rpm186N.m1.05
K37Y1.1KW1.1KW60rpm174N.m1.1
K37Y1.1KW1.1KW70rpm150N.m1.25
K37Y1.1KW1.1KW82rpm128N.m1.4
K37Y1.1KW1.1KW92rpm114N.m1.55
K37Y1.1KW1.1KW108rpm98N.m1.7
K37Y1.1KW1.1KW116rpm90N.m1.75
K37Y1.1KW1.1KW134rpm78N.m2
K37Y1.1KW1.1KW158rpm66N.m2.4
K37Y1.1KW1.1KW177rpm59N.m2.6
K37Y1.1KW1.1KW207rpm51N.m3
K37Y1.1KW1.1KW221rpm47N.m3.1
K37Y1.1KW1.1KW263rpm40N.m3.5
K37Y1.1KW1.1KW354rpm30N.m4.2

KAF38減速機配1.5KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y1.5KW1.5KW60rpm235N.m0.8
K37Y1.5KW1.5KW69rpm205N.m0.9
K37Y1.5KW1.5KW82rpm176N.m1.05
K37Y1.5KW1.5KW91rpm157N.m1.1
K37Y1.5KW1.5KW107rpm134N.m1.25
K37Y1.5KW1.5KW115rpm124N.m1.3
K37Y1.5KW1.5KW133rpm107N.m1.5
K37Y1.5KW1.5KW157rpm91N.m1.75
K37Y1.5KW1.5KW176rpm81N.m1.9
K37Y1.5KW1.5KW206rpm70N.m2.2
K37Y1.5KW1.5KW220rpm65N.m2.2
K37Y1.5KW1.5KW261rpm55N.m2.6
K37Y1.5KW1.5KW352rpm41N.m3.1

KAF38減速機配2.2KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y2.2KW2.2KW107rpm196N.m0.85
K37Y2.2KW2.2KW133rpm157N.m1
K37Y2.2KW2.2KW157rpm134N.m1.2
K37Y2.2KW2.2KW176rpm119N.m1.3
K37Y2.2KW2.2KW206rpm102N.m1.45
K37Y2.2KW2.2KW220rpm96N.m1.5
K37Y2.2KW2.2KW261rpm80N.m1.75
K37Y2.2KW2.2KW352rpm60N.m2.1

KAF38減速機配3KW電機參數

型號功率輸出轉數輸出扭矩服務系數
K37Y3KW3KW157rpm182N.m0.9
K37Y3KW3KW176rpm163N.m0.95
K37Y3KW3KW206rpm139N.m1.1
K37Y3KW3KW220rpm130N.m1.1
K37Y3KW3KW261rpm110N.m1.3
K37Y3KW3KW352rpm81N.m1.55

KAF38減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：K38減速機

關鍵詞:三級減速機配電機一體式_三相異步減速電機_二級減速機_角向減速機_GKAF系列減速機_KAF系列減速機_KAF系列減速器_三相異步減速機_二級減速器_三級減速器

KAF系列齒輪減速馬達型號：KAF38減速機,KAF48減速機,KAF58減速機,KAF68減速機,KAF78減速機,KAF88減速機,KAF98減速機,KAF108減速機,KAF128減速機,KAF158減速機,KAF167減速機,KAF187減速機

KAF系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


標簽:   KAF38減速機 KAF37螺旋傘齒輪減速機 KAF37系列減速機 KAF37減速機傳動比 KAF37減速機選型參數 KAF37減速機CAD三維圖

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KAF38減速機CAD三維圖紙下載 點擊下載
KAF38減速機選型參數下載 點擊下載
