R68R38減速機詳細信息
R68R38減速機
R68R38減速機電機功率：R68R38Y0.12KW減速機,R68R38Y0.18KW減速機,R68R38Y0.25KW減速機,R68R38Y0.37KW減速機（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
R67FRF37減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R67FRF37-Y0.12KW | 891 | 0.12KW | 1.60r/min | 625N.m | 39kg | 7190N | 0.95 |
| R67FRF37-Y0.12KW | 730 | 0.12KW | 1.90r/min | 505N.m | 39kg | 8530N | 1.20 |
| R67FRF37-Y0.12KW | 644 | 0.12KW | 2.10r/min | 440N.m | 39kg | 9060N | 1.35 |
| R67FRF37-Y0.12KW | 571 | 0.12KW | 2.40r/min | 385N.m | 39kg | 9430N | 1.55 |
| R67FRF37-Y0.12KW | 486 | 0.12KW | 2.80r/min | 320N.m | 39kg | 9790N | 1.85 |
| R67FRF37-Y0.12KW | 836 | 0.12KW | 1.60r/min | 590N.m | 39kg | 7670N | 1.00 |
| R67FRF37-Y0.12KW | 750 | 0.12KW | 1.80r/min | 490N.m | 39kg | 8630N | 1.20 |
| R67FRF37-Y0.12KW | 646 | 0.12KW | 2.10r/min | 440N.m | 39kg | 9050N | 1.35 |
| R67FRF37-Y0.12KW | 574 | 0.12KW | 2.40r/min | 400N.m | 39kg | 9330N | 1.50 |
| R67FRF37-Y0.12KW | 495 | 0.12KW | 2.80r/min | 345N.m | 39kg | 9660N | 1.75 |
| R67FRF37-Y0.12KW | 438 | 0.12KW | 3.20r/min | 285N.m | 39kg | 9940N | 2.10 |
R67FRF37減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R67FRF37-Y0.18KW | 571 | 0.18KW | 2.30r/min | 635N.m | 39.5kg | 7060N | 0.95 |
| R67FRF37-Y0.18KW | 486 | 0.18KW | 2.70r/min | 535N.m | 39.5kg | 8250N | 1.10 |
| R67FRF37-Y0.18KW | 574 | 0.18KW | 2.30r/min | 655N.m | 39.5kg | 5820N | 0.90 |
| R67FRF37-Y0.18KW | 495 | 0.18KW | 2.70r/min | 565N.m | 39.5kg | 7950N | 1.05 |
| R67FRF37-Y0.18KW | 438 | 0.18KW | 3.00r/min | 480N.m | 39.5kg | 8740N | 1.25 |
| R67FRF37-Y0.18KW | 388 | 0.18KW | 3.40r/min | 425N.m | 39.5kg | 9160N | 1.40 |
| R67FRF37-Y0.18KW | 344 | 0.18KW | 3.80r/min | 390N.m | 39.5kg | 9380N | 1.55 |
| R67FRF37-Y0.18KW | 294 | 0.18KW | 4.50r/min | 315N.m | 39.5kg | 9800N | 1.90 |
| R67FRF37-Y0.18KW | 261 | 0.18KW | 5.10r/min | 290N.m | 39.5kg | 9920N | 2.10 |
R67FRF37減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R67FRF37-Y0.25KW | 388 | 0.25KW | 3.40r/min | 620N.m | 43.5kg | 7290N | 0.95 |
| R67FRF37-Y0.25KW | 344 | 0.25KW | 3.80r/min | 565N.m | 43.5kg | 7950N | 1.05 |
| R67FRF37-Y0.25KW | 294 | 0.25KW | 4.40r/min | 465N.m | 43.5kg | 8870N | 1.30 |
| R67FRF37-Y0.25KW | 261 | 0.25KW | 5.00r/min | 420N.m | 43.5kg | 9180N | 1.40 |
| R67FRF37-Y0.25KW | 234 | 0.25KW | 5.60r/min | 380N.m | 43.5kg | 9460N | 1.60 |
| R67FRF37-Y0.25KW | 200 | 0.25KW | 6.50r/min | 320N.m | 43.5kg | 9780N | 1.85 |
| R67FRF37-Y0.25KW | 176 | 0.25KW | 7.40r/min | 275N.m | 43.5kg | 9980N | 2.20 |
| R67FRF37-Y0.25KW | 158 | 0.25KW | 8.20r/min | 250N.m | 43.5kg | 10100N | 2.40 |
| R67FRF37-Y0.25KW | 384 | 0.25KW | 3.40r/min | 640N.m | 43.5kg | 6960N | 0.95 |
| R67FRF37-Y0.25KW | 359 | 0.25KW | 3.60r/min | 600N.m | 43.5kg | 7550N | 1.00 |
| R67FRF37-Y0.25KW | 310 | 0.25KW | 4.20r/min | 515N.m | 43.5kg | 8430N | 1.15 |
| R67FRF37-Y0.25KW | 264 | 0.25KW | 4.90r/min | 435N.m | 43.5kg | 9100N | 1.40 |
| R67FRF37-Y0.25KW | 235 | 0.25KW | 5.50r/min | 385N.m | 43.5kg | 9420N | 1.55 |
| R67FRF37-Y0.25KW | 201 | 0.25KW | 6.50r/min | 325N.m | 43.5kg | 9750N | 1.85 |
| R67FRF37-Y0.25KW | 181 | 0.25KW | 7.20r/min | 295N.m | 43.5kg | 9900N | 2.00 |
R67FRF37減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R67FRF37-Y0.37KW | 294 | 0.37KW | 4.70r/min | 665N.m | 44kg | 4670N | 0.90 |
| R67FRF37-Y0.37KW | 261 | 0.37KW | 5.30r/min | 600N.m | 44kg | 7550N | 1.00 |
| R67FRF37-Y0.37KW | 234 | 0.37KW | 5.90r/min | 535N.m | 44kg | 8220N | 1.10 |
| R67FRF37-Y0.37KW | 200 | 0.37KW | 6.90r/min | 455N.m | 44kg | 8930N | 1.30 |
R68R38減速器減速比：158比減速器,176比減速器,181比減速器,200比減速器,201比減速器,234比減速器,235比減速器,261比減速器,264比減速器,294比減速器,310比減速器,344比減速器,359比減速器,384比減速器,388比減速器,438比減速器,486比減速器,495比減速器,571比減速器,574比齒輪減速馬達,644比減速器,646比減速器,730比減速器,750比減速器,836比減速器,891比減速器。
R68R38減速機電機安裝尺寸：輸出軸Φ35+鍵3（可定做），高212*寬213*長437（帶輸出軸）
R68R38減速電機輸出轉數：1.6轉減速電機,1.8轉減速電機,1.9轉減速電機,2.1轉減速電機,2.3轉減速電機,2.4轉減速電機,2.7轉減速電機,2.8轉減速電機,3轉減速電機,3.2轉減速電機,3.4轉減速電機,3.6轉減速電機,3.8轉減速電機,4.2轉減速電機,4.4轉減速電機,4.5轉減速電機,4.7轉減速電機,4.9轉減速電機,5轉減速電機,5.1轉減速電機,5.3轉減速電機,5.5轉臥式減速機,5.6轉減速電機,5.9轉減速電機,6.5轉減速電機,6.9轉減速電機,7.2轉減速電機,7.4轉減速電機,8.2轉減速電機。
R68R38減速箱電機輸出扭矩：250N.m減速箱,275N.m減速箱,285N.m減速箱,290N.m減速箱,295N.m減速箱,315N.m減速箱,320N.m減速箱,325N.m減速箱,345N.m減速箱,380N.m減速箱,385N.m減速箱,390N.m減速箱,400N.m減速箱,420N.m減速箱,425N.m減速箱,435N.m減速箱,440N.m減速箱,455N.m減速箱,465N.m減速箱,480N.m減速箱,490N.m減速箱,505N.m減速箱,515N.m減速箱,535N.m減速箱,565N.m減速箱,590N.m減速箱,600N.m減速箱,620N.m減速箱,625N.m減速箱,635N.m減速箱,640N.m減速箱,655N.m減速箱,665N.m減速箱。

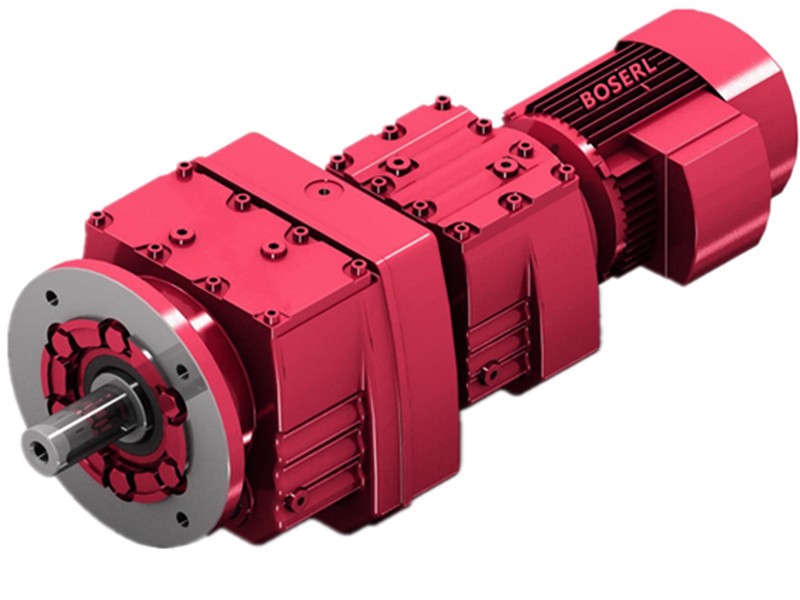

R68R38減速機電機各種輸出實物圖：
R68R38減速馬達型號：
R67FR37DM63L4,R67FR37DM63M4,R67FR37DM63MS4,R67FR37DM63S4,R67FR37DM71D4,R67FR37DM71M4,R67FR37DM71MS4,R67FR37DM71S4,R67FR37DR63L4,R67FR37DR63M4,R67FR37DR63MS4,R67FR37DR63S4,R67FR37DR71D4,R67FR37DR71M4,R67FR37DR71MS4,R67FR37DR71S4,R67FR37DRE63L4,R67FR37DRE63M4,R67FR37DRE63MS4,R67FR37DRE63S4,R67FR37DRE71D4,R67FR37DRE71M4,R67FR37DRE71MS4,R67FR37DRE71S4,R67FR37DRN63L4,R67FR37DRN63M4,R67FR37DRN63MS4,R67FR37DRN63S4,R67FR37DRN71D4,R67FR37DRN71M4,R67FR37DRN71MS4,R67FR37DRN71S4,R67FR37DRS63L4,R67FR37DRS63M4,R67FR37DRS63MS4,R67FR37DRS63S4,R67FR37DRS71D4,R67FR37DRS71M4,R67FR37DRS71MS4,R67FR37DRS71S4,R67FR37DT63L4,R67FR37DT63M4,R67FR37DT63MS4,R67FR37DT63S4,R67FR37DT71D4,R67FR37DT71M4,R67FR37DT71MS4,R67FR37DT71S4,R67FR37DV63L4,R67FR37DV63M4,R67FR37DV63MS4,R67FR37DV63S4,R67FR37DV71D4,R67FR37DV71M4,R67FR37DV71MS4,R67FR37DV71S4,R67FR37DVE63L4,R67FR37DVE63M4,R67FR37DVE63MS4,R67FR37DVE63S4,R67FR37DVE71D4,R67FR37DVE71M4,R67FR37DVE71MS4,R67FR37DVE71S4,R67FRF37-Y0.12KW,R67FRF37-Y0.18KW,R67FRF37-Y0.25KW,R67FRF37-Y0.37KW,R67FRF37-YEJ0.12KW,R67FRF37-YEJ0.18KW,R67FRF37-YEJ0.25KW,R67FRF37-YEJ0.37KW,R67FRF37-YVP0.12KW,R67FRF37-YVP0.18KW,R67FRF37-YVP0.25KW,R67FRF37-YVP0.37KW,R67FRF37-YVPEJ0.12KW,R67FRF37-YVPEJ0.18KW,R67FRF37-YVPEJ0.25KW,R67FRF37-YVPEJ0.37KW。
R68R38減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.toowatch.com/product/list-rxiliejiansuji-cn.html
推薦型號：R68減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: R67FRF37-Y0.12KW R67FRF37-Y0.18KW R67FRF37-Y0.25KW R67FRF37-Y63M4 R67FRF37-Y71M4 R67FRF37-Y0.37KW
