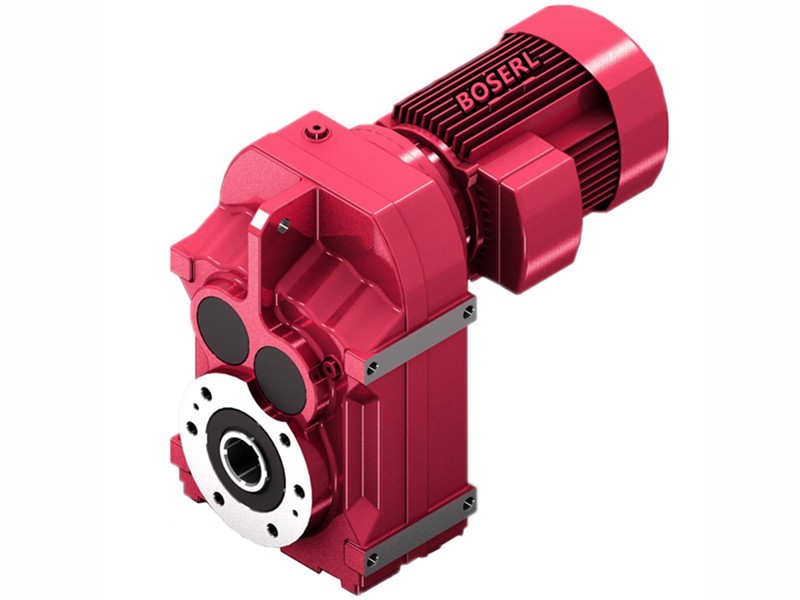

FA128減速電機詳細信息
FA128減速電機
FA128減速電機基座參數計算公式：齒輪減速馬達
滑塊傳送帶參數：承重83000Kg，輪子直徑φ300mm，拉動速度0.85m/s
運輸速度0.85m×60s=51m每分鐘
3.14(圓周率)×0.3m(輪子直徑300mm)=0.942m
51m÷0.942m=54.14r/min輸出轉數
輸送物流83000Kg換算成N=813400n
813400n×0.15輪子半徑×0.06摩擦系數=7320.6×2=14641.2N.m輸出扭矩
1400電機輸入轉速÷54.14r/min=25.85減速比
14641.2N.m輸出扭矩÷25.85減速比=566.39N.m電機扭矩
566.39N.m電機扭矩?fù)Q算成電機功率=89.99KW左右
對應的FA128減速電機功率型號：
型號：FA128-BVP90KW
減速比：25.3
輸出轉數：58轉
輸出扭矩：14600N.m
安全系數：0.8
FA128減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）平行軸斜齒輪減速機

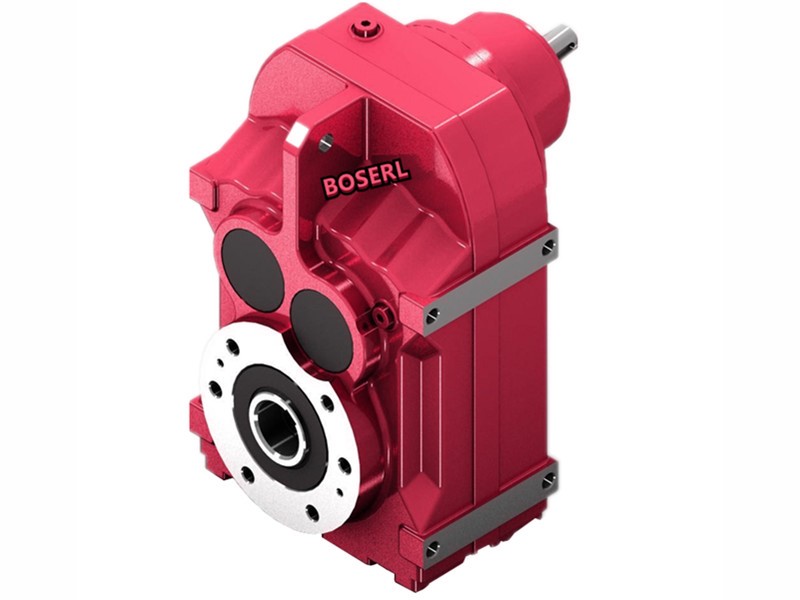

FA128平行軸齒輪減速機型號：
FA128減速電機型號參數：分體減速機電機
FA128減速機配7.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F127Y7.5KW | 7.5KW | 8.60rpm | 8320N.m | 1.45 |
| F127Y7.5KW | 7.5KW | 9.60rpm | 7480N.m | 1.60 |
| F127Y7.5KW | 7.5KW | 12.0rpm | 6100N.m | 1.95 |
FA128減速機配11KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F127Y11KW | 11KW | 8.60rpm | 12100N.m | 1.00 |
| F127Y11KW | 11KW | 9.60rpm | 10900N.m | 1.10 |
| F127Y11KW | 11KW | 12.0rpm | 8920N.m | 1.35 |
| F127Y11KW | 11KW | 13.0rpm | 8140N.m | 1.45 |
| F127Y11KW | 11KW | 15.0rpm | 7040N.m | 1.70 |
| F127Y11KW | 11KW | 17.0rpm | 6210N.m | 1.95 |
| F127Y11KW | 11KW | 20.0rpm | 5370N.m | 2.20 |
FA128減速機配15KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F127Y15KW | 15KW | 12.0rpm | 12200N.m | 1.00 |
| F127Y15KW | 15KW | 13.0rpm | 11100N.m | 1.05 |
| F127Y15KW | 15KW | 15.0rpm | 9670N.m | 1.25 |
| F127Y15KW | 15KW | 17.0rpm | 8530N.m | 1.40 |
| F127Y15KW | 15KW | 19.0rpm | 7370N.m | 1.65 |
| F127Y15KW | 15KW | 21.0rpm | 6850N.m | 1.75 |
FA128減速機配18.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F127Y18.5KW | 18.5KW | 13.0rpm | 13700N.m | 0.85 |
| F127Y18.5KW | 18.5KW | 15.0rpm | 11900N.m | 1.00 |
| F127Y18.5KW | 18.5KW | 17.0rpm | 10500N.m | 1.15 |
| F127Y18.5KW | 18.5KW | 19.0rpm | 9090N.m | 1.30 |
| F127Y18.5KW | 18.5KW | 21.0rpm | 8450N.m | 1.40 |
| F127Y18.5KW | 18.5KW | 23.0rpm | 7700N.m | 1.55 |
| F127Y18.5KW | 18.5KW | 26.0rpm | 6660N.m | 1.80 |
| F127Y18.5KW | 18.5KW | 30.0rpm | 5880N.m | 2.00 |
FA128減速機配22KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F127Y22KW | 22KW | 15.0rpm | 14000N.m | 0.85 |
| F127Y22KW | 22KW | 17.0rpm | 12400N.m | 0.95 |
| F127Y22KW | 22KW | 20.0rpm | 10700N.m | 1.10 |
| F127Y22KW | 22KW | 21.0rpm | 9980N.m | 1.20 |
| F127Y22KW | 22KW | 23.0rpm | 9100N.m | 1.30 |
| F127Y22KW | 22KW | 27.0rpm | 7870N.m | 1.50 |
| F127Y22KW | 22KW | 30.0rpm | 6950N.m | 1.75 |
| F127Y22KW | 22KW | 35.0rpm | 6000N.m | 2.00 |
FA128減速機配30KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F127Y30KW | 30KW | 20.0rpm | 14600N.m | 0.80 |
| F127Y30KW | 30KW | 21.0rpm | 13600N.m | 0.90 |
| F127Y30KW | 30KW | 23.0rpm | 12400N.m | 0.95 |
| F127Y30KW | 30KW | 27.0rpm | 10700N.m | 1.10 |
| F127Y30KW | 30KW | 30.0rpm | 9470N.m | 1.25 |
| F127Y30KW | 30KW | 35.0rpm | 8180N.m | 1.45 |
| F127Y30KW | 30KW | 40.0rpm | 7240N.m | 1.65 |
| F127Y30KW | 30KW | 55.0rpm | 5210N.m | 1.65 |
| F127Y30KW | 30KW | 60.0rpm | 4770N.m | 1.80 |
| F127Y30KW | 30KW | 47.0rpm | 6080N.m | 1.95 |
| F127Y30KW | 30KW | 58.0rpm | 4910N.m | 2.40 |
| F127Y30KW | 30KW | 69.0rpm | 4150N.m | 2.90 |
| F127Y30KW | 30KW | 78.0rpm | 3660N.m | 3.00 |
FA128減速機配37KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F127Y37KW | 37KW | 27.0rpm | 13200N.m | 0.90 |
| F127Y37KW | 37KW | 30.0rpm | 11600N.m | 1.05 |
| F127Y37KW | 37KW | 35.0rpm | 10000N.m | 1.20 |
| F127Y37KW | 37KW | 40.0rpm | 8910N.m | 1.35 |
| F127Y37KW | 37KW | 55.0rpm | 6420N.m | 1.30 |
| F127Y37KW | 37KW | 60.0rpm | 5870N.m | 1.45 |
| F127Y37KW | 37KW | 47.0rpm | 7490N.m | 1.60 |
| F127Y37KW | 37KW | 58.0rpm | 6050N.m | 2.00 |
| F127Y37KW | 37KW | 69.0rpm | 5110N.m | 2.40 |
| F127Y37KW | 37KW | 78.0rpm | 4510N.m | 2.40 |
| F127Y37KW | 37KW | 90.0rpm | 3910N.m | 2.80 |
| F127Y37KW | 37KW | 102rpm | 3480N.m | 3.20 |
| F127Y37KW | 37KW | 118rpm | 3000N.m | 3.30 |
| F127Y37KW | 37KW | 145rpm | 2430N.m | 3.90 |
| F127Y37KW | 37KW | 167rpm | 2110N.m | 3.30 |
| F127Y37KW | 37KW | 187rpm | 1880N.m | 3.20 |
FA128減速機配45KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F127Y45KW | 45KW | 30.0rpm | 14100N.m | 0.85 |
| F127Y45KW | 45KW | 35.0rpm | 12200N.m | 1.00 |
| F127Y45KW | 45KW | 40.0rpm | 10800N.m | 1.10 |
| F127Y45KW | 45KW | 55.0rpm | 7810N.m | 1.10 |
| F127Y45KW | 45KW | 60.0rpm | 7140N.m | 1.20 |
| F127Y45KW | 45KW | 47.0rpm | 9100N.m | 1.30 |
| F127Y45KW | 45KW | 58.0rpm | 7350N.m | 1.65 |
| F127Y45KW | 45KW | 69.0rpm | 6210N.m | 1.95 |
| F127Y45KW | 45KW | 78.0rpm | 5480N.m | 2.00 |
| F127Y45KW | 45KW | 90.0rpm | 4750N.m | 2.30 |
| F127Y45KW | 45KW | 102rpm | 4230N.m | 2.60 |
| F127Y45KW | 45KW | 118rpm | 3640N.m | 2.70 |
| F127Y45KW | 45KW | 145rpm | 2960N.m | 3.20 |
| F127Y45KW | 45KW | 167rpm | 2570N.m | 2.70 |
| F127Y45KW | 45KW | 187rpm | 2290N.m | 2.60 |
| F127Y45KW | 45KW | 218rpm | 1970N.m | 3.50 |
| F127Y45KW | 45KW | 268rpm | 1600N.m | 3.70 |
FA128減速機配55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F127Y55KW | 55KW | 40.0rpm | 13200N.m | 0.90 |
| F127Y55KW | 55KW | 47.0rpm | 11100N.m | 1.10 |
| F127Y55KW | 55KW | 58.0rpm | 9010N.m | 1.35 |
| F127Y55KW | 55KW | 69.0rpm | 7610N.m | 1.60 |
| F127Y55KW | 55KW | 78.0rpm | 6710N.m | 1.65 |
| F127Y55KW | 55KW | 90.0rpm | 5820N.m | 1.90 |
| F127Y55KW | 55KW | 101rpm | 5180N.m | 2.10 |
| F127Y55KW | 55KW | 118rpm | 4460N.m | 2.20 |
| F127Y55KW | 55KW | 145rpm | 3620N.m | 2.60 |
| F127Y55KW | 55KW | 166rpm | 3150N.m | 2.20 |
| F127Y55KW | 55KW | 187rpm | 2800N.m | 2.10 |
| F127Y55KW | 55KW | 217rpm | 2410N.m | 2.90 |
| F127Y55KW | 55KW | 315rpm | 1660N.m | 3.60 |
FA128減速機配75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F127Y75KW | 75KW | 58.0rpm | 12200N.m | 1.00 |
| F127Y75KW | 75KW | 69.0rpm | 10300N.m | 1.15 |
| F127Y75KW | 75KW | 78.0rpm | 9120N.m | 1.20 |
| F127Y75KW | 75KW | 90.0rpm | 7910N.m | 1.40 |
| F127Y75KW | 75KW | 102rpm | 7040N.m | 1.55 |
| F127Y75KW | 75KW | 118rpm | 6060N.m | 1.65 |
| F127Y75KW | 75KW | 145rpm | 4930N.m | 1.95 |
| F127Y75KW | 75KW | 167rpm | 4280N.m | 1.65 |
| F127Y75KW | 75KW | 188rpm | 3810N.m | 1.55 |
| F127Y75KW | 75KW | 218rpm | 3280N.m | 2.10 |
| F127Y75KW | 75KW | 268rpm | 2670N.m | 2.20 |
| F127Y75KW | 75KW | 316rpm | 2260N.m | 2.60 |
FA128減速機配90KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F127Y90KW | 90KW | 58.0rpm | 14600N.m | 0.80 |
| F127Y90KW | 90KW | 90.0rpm | 9490N.m | 1.15 |
| F127Y90KW | 90KW | 102rpm | 8450N.m | 1.30 |
| F127Y90KW | 90KW | 118rpm | 7280N.m | 1.35 |
| F127Y90KW | 90KW | 145rpm | 5910N.m | 1.60 |
| F127Y90KW | 90KW | 167rpm | 5140N.m | 1.35 |
| F127Y90KW | 90KW | 188rpm | 4570N.m | 1.30 |
| F127Y90KW | 90KW | 218rpm | 3940N.m | 1.75 |
| F127Y90KW | 90KW | 268rpm | 3200N.m | 1.85 |
| F127Y90KW | 90KW | 316rpm | 2710N.m | 2.20 |
FA128減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：F128減速機
關鍵詞:GFA系列減速器配馬達一體式_分體電機減速機_分體減速機_分體減速機電機_分體電機_FA系列減速機_FA型減速機_GFA系列減速機_FA系列減速器_FA系列減速機生產廠家
FA系列齒輪減速馬達型號：FA28減速機,FA38減速機,FA48減速機,FA68減速機,FA78減速機,FA88減速機,FA98減速機,FA108減速機,FA128減速機,FA158減速機
FA系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
